Ford Fiesta: Engine System - General Information / Piston Selection. General Procedures

Ford Fiesta 2014 - 2019 Service Manual / Engine / Engine System - General Information / Piston Selection. General Procedures

Check

NOTE: Refer to the appropriate Section 303-01 for the specifications.

NOTE: The cylinder bore must be within the specifications for taper and out-of-round before fitting a piston.

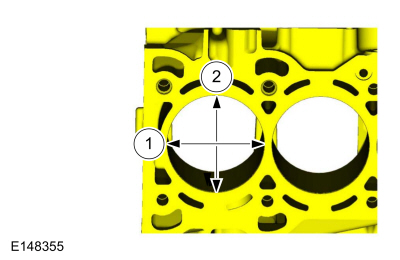

- Measure the cylinder bore in 2 directions at 79.75 mm (3.139 in) from block deck.
- Make sure that the piston-to-bore clearance is within specifications.

Piston Ring End Gap. General Procedures

Special Tool(s) / General Equipment Feeler Gauge Check NOTE: Refer to the appropriate Section 303-01 for the specification. NOTE: Use care when fitting piston rings to avoid possible damage to the piston ring or the cylinder bore...

Valve Guide Inner Diameter. General Procedures

Check NOTE: Refer to the appropriate Section 303-01 for the specification. NOTE: Valve guides tend to wear in an hourglass pattern...

Other information:

Ford Fiesta 2014 - 2019 Service Manual: Information and Entertainment System - System Operation and Component Description. Description and Operation

System Operation System Diagram Network Message Chart ACM Module Network Input Messages Broadcast Message Originating Module Message Purpose Audio button state FCDIM Used to indicate when a button is pressed on the FCIM ...

Ford Fiesta 2014 - 2019 Service Manual: Anti-Lock Brake System (ABS) and Stability Control - System Operation and Component Description. Description and Operation

System Operation System Diagram Item Description 1 HCU 2 Private HS-CAN 3 Hydraulic pump motor 4 Brake pressure sensor 5 Valve solenoids 6 ABS module 7 LH rear wheel speed sensor 8 RH front wheel speed sensor 9 RH rear wheel speed sensor ..

Component Bleeding. General Procedures

Special Tool(s) / General Equipment

Master Cylinder Bleeding Set

Bleeding

NOTICE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

Master Cylinder

NOTE: When a new brake master cylinder has been installed, it should be primed to prevent air from entering the system.

NOTE: Make sure the area around the master cylinder cap is clean and free of foreign material.

Remove the brake fluid reservoir cap.
