Ford Fiesta: Engine System - General Information / Piston Diameter. General Procedures

Check

NOTE: Refer to the appropriate Section 303-01 for the specification.

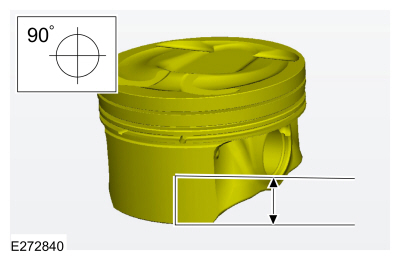

  1. Measure the piston diameter (at the measuring window) 90 degrees from the piston pin and 10 mm (.394 in) up from the bottom of the piston at the point indicated.

    Flywheel Inspection - 1.6L EcoBoost (132kW/180PS) – Sigma. General Procedures

    Inspection NOTE: Do not clean the dual mass flywheel with compressed air. NOTE: Do not clean the dual mass flywheel with any kind of fluid, use a dry cloth only or damage to the dual mass flywheel may occur...

    Piston Inspection. General Procedures

    Inspection NOTE: Do not use a caustic cleaning solution or a wire brush to clean the pistons or damage can occur. Clean and inspect the (1) ring lands, (2) pin bosses, (3) skirts and the (4) tops of the pistons...
