Ford Fiesta: Passive Anti-Theft System (PATS) - Vehicles With: Keyless Entry and Push Button Start / Passive Anti-Theft System (PATS) Transceiver. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Electronic Feature Group / Passive Anti-Theft System (PATS) - Vehicles With: Keyless Entry and Push Button Start / Passive Anti-Theft System (PATS) Transceiver. Removal and Installation

Removal

Remove the steering column shrouds.
Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation).

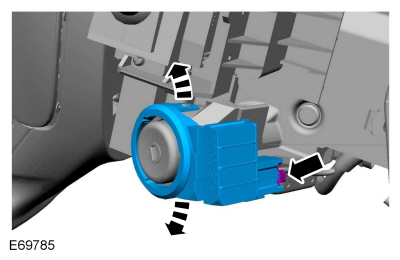

Disconnect the electrical connector, release the tabs and remove the PATS transceiver.

Installation

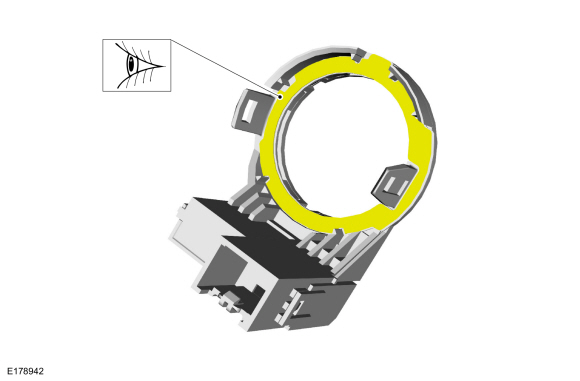

Visually inspect to verify the ring is installed on the PATS transceiver.

To install, reverse the removal procedure.

Passive Anti-Theft System (PATS) Parameter Reset. General Procedures

Programming NOTE: This procedure erases all keys from the RFA module. Make sure at least two passive keys are present before performing this procedure...

Passive Anti-Theft System (PATS) Front Antenna. Removal and Installation

Removal Remove the selector lever assembly and gearshift lever. Refer to: Selector Lever Assembly (307-05 Automatic Transmission External Controls - 6-Speed PowerShift Transmission – DPS6/6DCT250, Removal and Installation)...
