Ford Fiesta: Climate Control System - General Information / Passenger Side Register. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Climate Control System / Climate Control System - General Information / Passenger Side Register. Removal and Installation

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

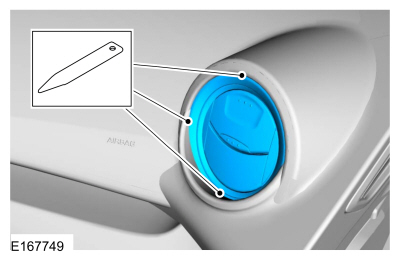

  1. Remove the passenger side register assembly.
    Use the General Equipment: Interior Trim Remover

Installation

  1. To install, reverse the removal procedure.
