Ford Fiesta: Body Repairs - General Information / Noise, Vibration and Harshness. Description and Operation
Sound Deadeners and Insulators
NOTICE: Mastic material is made of a combustible material and should be removed prior to carrying out welding procedures to the area. Heat zones from welding near mastic may cause the mastic material to burn.
NOTICE: Corrosion protection must be restored to the area after the mastic material is applied. Corrosion protection products may be wax based and loss of adhesion may occur if applied prior to mastic installation.
The following serve as a reference to indicate mastic patch and NVH material locations. Additional insulators and sound deadeners are used beyond those indicated in the illustrations.

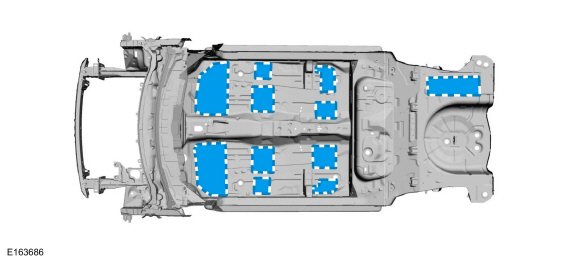

Floor Pan

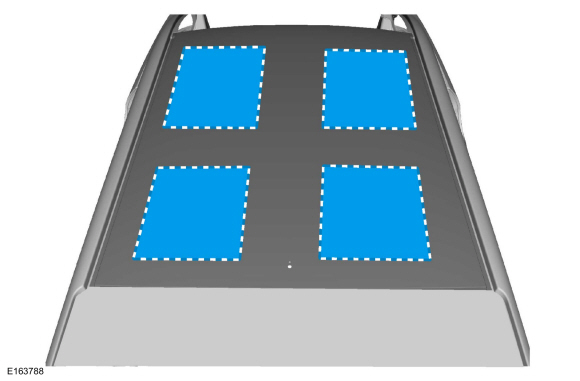

Roof Panel - Vehicles Without Glass Roof Panel
NOTE: 4-door sedan roof panel shown, 5-door similar.

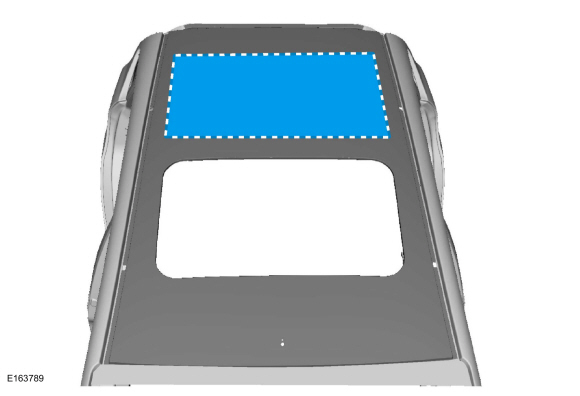

Roof Panel - Vehicles With Roof Opening Panel
NOTE: 5-door roof panel shown, 4-door sedan similar.

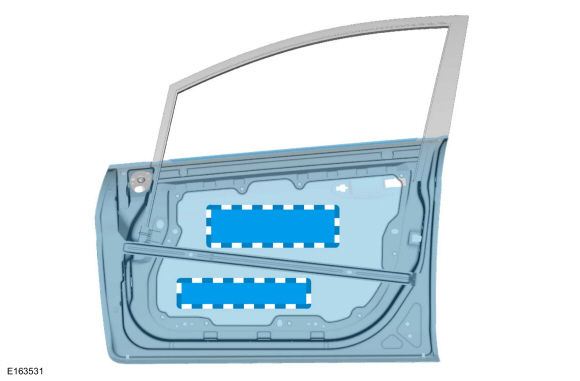

Front Door
NOTE: LH side shown, RH side similar.

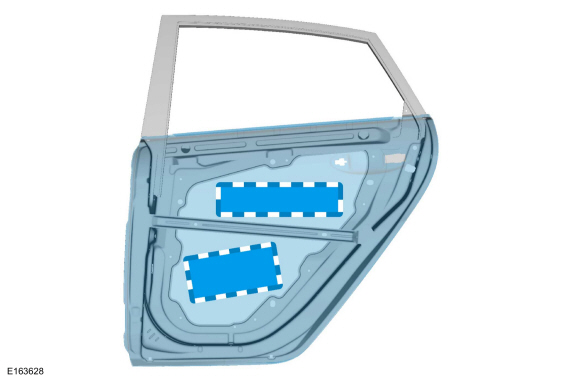

Rear Door
NOTE: LH side shown, RH side similar.
Plastic Repairs. Description and Operation
Plastic Components
The
following illustration(s) are not all-inclusive of trim levels
available. The actual trim level of the vehicle will determine the
viability of carrying out a plastics repair...
Impact of Insufficient Repair Quality. Description and Operation
Body
repairs usually require a significant level of intervention in the
existing body shell structure. The corrosion protection, seals and NVH components are destroyed and must be replaced...
