Ford Fiesta: Multifunction Electronic Modules / Module Controlled Functions - Component Location. Description and Operation

Ford Fiesta 2014 - 2019 Service Manual / Electronic Feature Group / Multifunction Electronic Modules / Module Controlled Functions - Component Location. Description and Operation

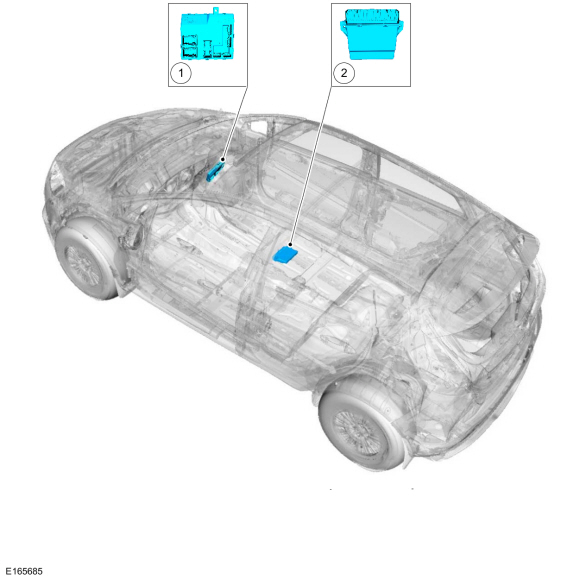

Item	Description
1	BCM
2	RFA
