Ford Fiesta: Handles, Locks, Latches and Entry Systems / Liftgate Latch. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Handles, Locks, Latches and Entry Systems / Liftgate Latch. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the liftgate trim panel.
Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

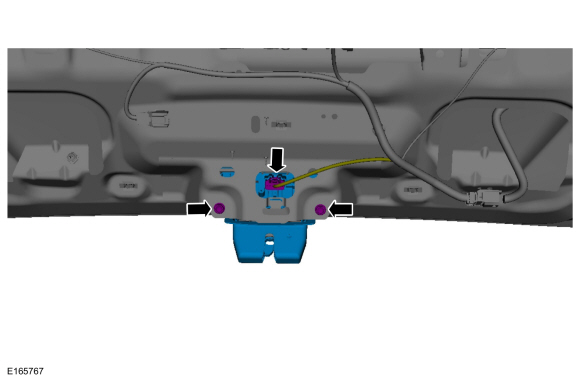

Remove the liftgate latch.
- Disconnect the liftgate latch electrical connector.
- Remove the retainers and the liftgate latch.
  Torque: 89 lb.in (10 Nm)

Installation

To install, reverse the removal procedure.
