Ford Fiesta: Climate Control System - General Information / Heating, Ventilation and Air Conditioning (HVAC) Control Module. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Climate Control System / Climate Control System - General Information / Heating, Ventilation and Air Conditioning (HVAC) Control Module. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the instrument panel lower trim panel.
Refer to: Instrument Panel Lower Trim Panel (501-12 Instrument Panel and Console, Removal and Installation).

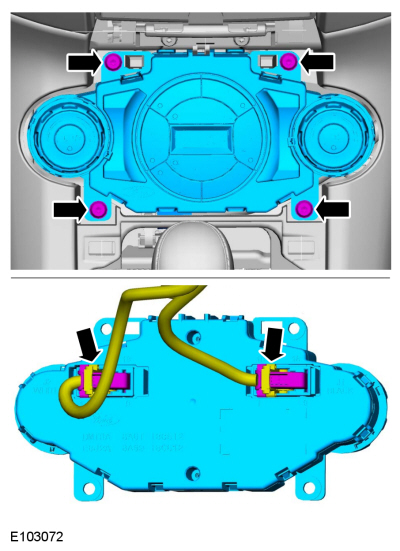

Remove the retainers and the HVAC control module. Disconnect the electrical connectors.

Installation

To install, reverse the removal procedure.
