Ford Fiesta: Exterior Lighting / Headlamp Switch. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Lighting / Exterior Lighting / Headlamp Switch. Removal and Installation

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Use a non-marring tool.

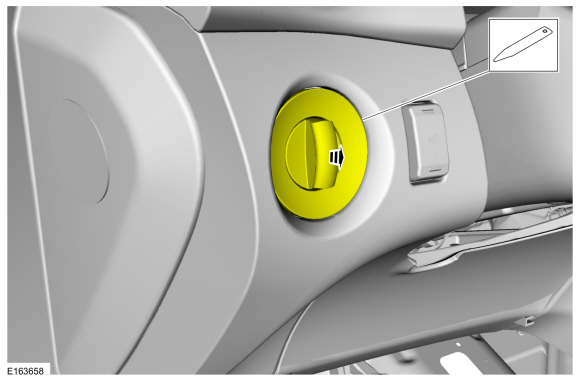

Release and position the headlamp switch.
Use the General Equipment: Interior Trim Remover

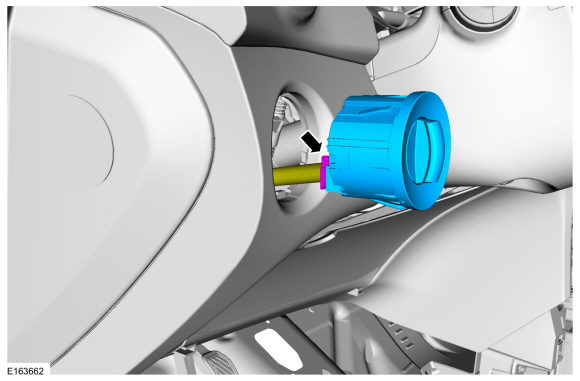

Disconnect the electrical connector and remove the headlamp switch.

Installation

To install, reverse the removal procedure.

Stoplamp Switch. Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. NOTICE: Do not press, pull or otherwise move the brake pedal while installing the stoplamp switch and cruise control deactivation switch...

High Mounted Stoplamp. Removal and Installation

Removal 4-door Remove the high mounted stop lamp cover. Disconnect the high mounted stoplamp electrical connector...
