Ford Fiesta: Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC / Global Positioning System Module (GPSM). Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Information and Entertainment Systems / Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC / Global Positioning System Module (GPSM). Removal and Installation

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current GPSM installed. If the current GPSM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Date as part of the repair.
Using a diagnostic scan tool, begin the PMI process for the GPSM following the on-screen instructions.

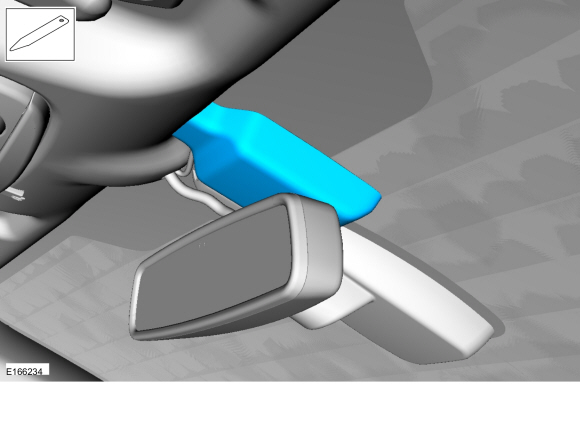

Remove the rear view mirror cover.
Use the General Equipment: Interior Trim Remover

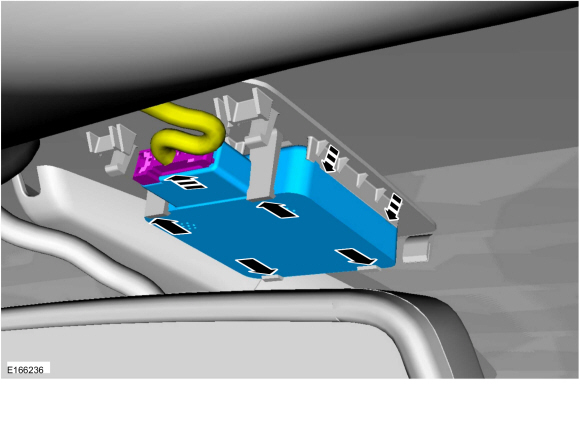

Release the clips and remove the GPSM .
- Disconnect the electrical connector.

Installation

To install, reverse the removal procedure.

NOTE: This step is only necessary when installing a new component.
Using a diagnostic scan tool, complete the PMI process for the GPSM following the on-screen instructions.

Front Door Speaker. Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. Remove the front door trim panel. Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...

Microphone. Removal and Installation

Special Tool(s) / General Equipment Interior Trim Remover Removal NOTE: If the microphone is removed from the headliner, a new microphone must be installed...
