Ford Fiesta: Manual Transmission External Controls - 5-Speed Manual Transmission – B5/IB5/6-Speed Manual Transmission – B6 / Gearshift Lever Boot. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Manual Transmission, Clutch, Transfer Case and Power Transfer Unit / Manual Transmission External Controls - 5-Speed Manual Transmission – B5/IB5/6-Speed Manual Transmission – B6 / Gearshift Lever Boot. Removal and Installation

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

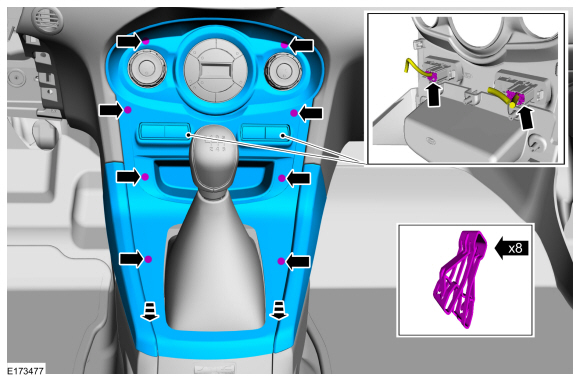

  1. Release the clips and remove the instrument panel center finish panel.
    • Disconnect the electrical connectors.
      Use the General Equipment: Interior Trim Remover

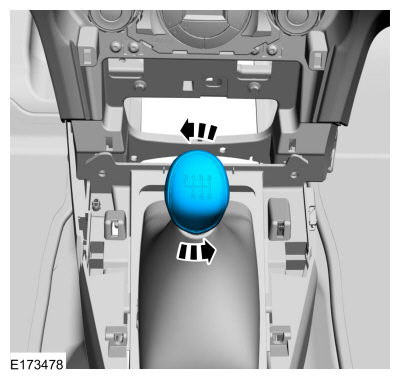

  1. Rotate and remove the selector lever knob.

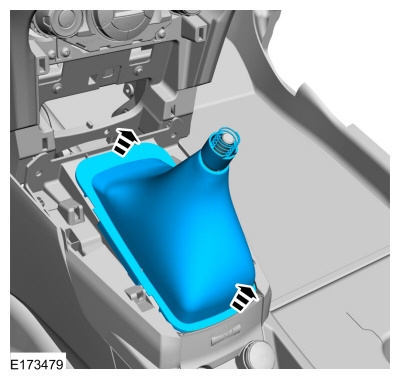

  1. Remove the gearshift lever boot.

Installation

  1. To install, reverse the removal procedure.

    Gearshift Cable Adjustment - 6-Speed Manual Transmission – B6. General Procedures

    Adjustment Position the gearshift in N and apply the P brake. Remove the air cleaner outlet pipe...

    Gearshift Lever. Removal and Installation

    Removal Remove the floor console. Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation). Disconnect the gearshift cable ends from the ball studs, slide the lock sleeve and remove the gearshift cables from the gearshift lever...
