Ford Fiesta: Manual Transmission External Controls - 5-Speed Manual Transmission – B5/IB5/6-Speed Manual Transmission – B6 / Gearshift Cable Adjustment - 6-Speed Manual Transmission – B6. General Procedures

Ford Fiesta 2014 - 2019 Service Manual / Manual Transmission, Clutch, Transfer Case and Power Transfer Unit / Manual Transmission External Controls - 5-Speed Manual Transmission – B5/IB5/6-Speed Manual Transmission – B6 / Gearshift Cable Adjustment - 6-Speed Manual Transmission – B6. General Procedures

Adjustment

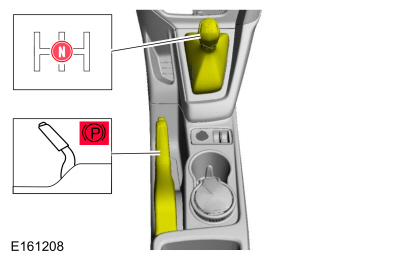

Position the gearshift in N and apply the P brake.

Remove the air cleaner outlet pipe.
Refer to: Air Cleaner Outlet Pipe (303-12B Intake Air Distribution and Filtering - 1.6L EcoBoost (132kW/180PS) – Sigma, Removal and Installation).

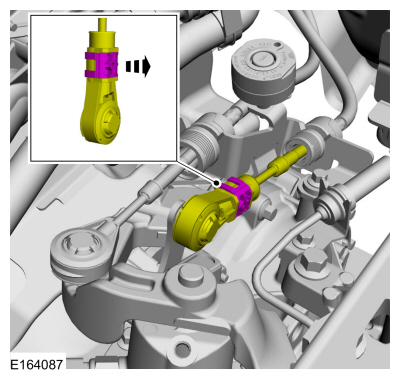

Unlock the adjuster.

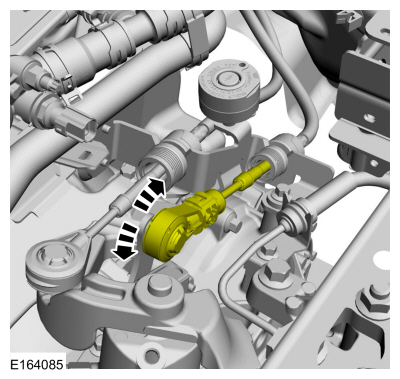

Move the gearshift select cable back and forth and verify free motion.

NOTE: By placing the gearshift lever into the 4th gear position, it locks the small lever into the N position.

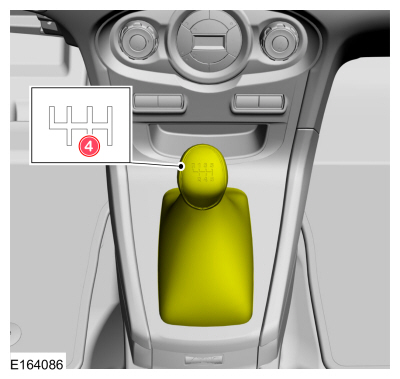

Position the gearshifter in 4th gear.

Lock the adjuster.

Install the air cleaner outlet pipe.
Refer to: Air Cleaner Outlet Pipe (303-12B Intake Air Distribution and Filtering - 1.6L EcoBoost (132kW/180PS) – Sigma, Removal and Installation).

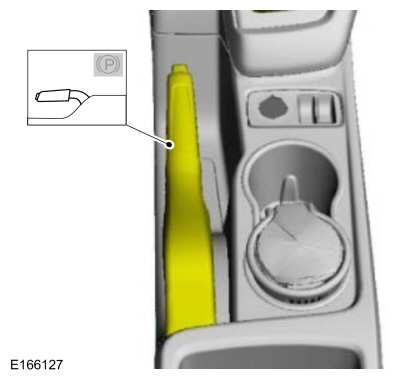

Release the parking brake.
