Ford Fiesta: Fuel Tank and Lines - 1.6L EcoBoost (132kW/180PS) – Sigma / Fuel Level Sender. Removal and Installation
Ford Fiesta 2014 - 2019 Service Manual / Fuel System / Fuel Tank and Lines - 1.6L EcoBoost (132kW/180PS) – Sigma / Fuel Level Sender. Removal and Installation
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
Remove the Fuel Pump and Sender Unit.
Refer to: Fuel Pump and Sender Unit (310-01B Fuel Tank and Lines - 1.6L EcoBoost (132kW/180PS) – Sigma, Removal and Installation).
-

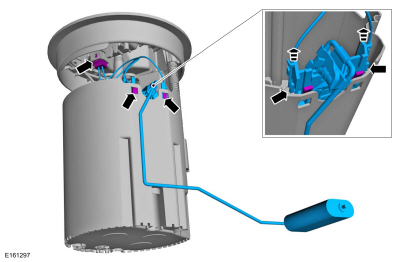

Disconnect the fuel level sender electrical connector,
release the retainer tab and remove the fuel level sender.
 |
Installation
-
To install, reverse the removal procedure.
Fuel Tank. Removal and Installation
Special Tool(s) /
General Equipment
Hose Clamp(s)
Powertrain Jack
Removal
NOTE:
Removal steps in this procedure may contain installation steps...
Fuel Tank Filler Pipe. Removal and Installation
Special Tool(s) /
General Equipment
Hose Clamp(s)
Removal
NOTE:
Removal steps in this procedure may contain installation steps...
