Ford Fiesta: Glass, Frames and Mechanisms / Front Door Window Glass Weatherstrip. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Glass, Frames and Mechanisms / Front Door Window Glass Weatherstrip. Removal and Installation

Removal

NOTE: LH side shown, RH side similar.

NOTE: The front door wndow glass weatherstrip must be replaced once removed.

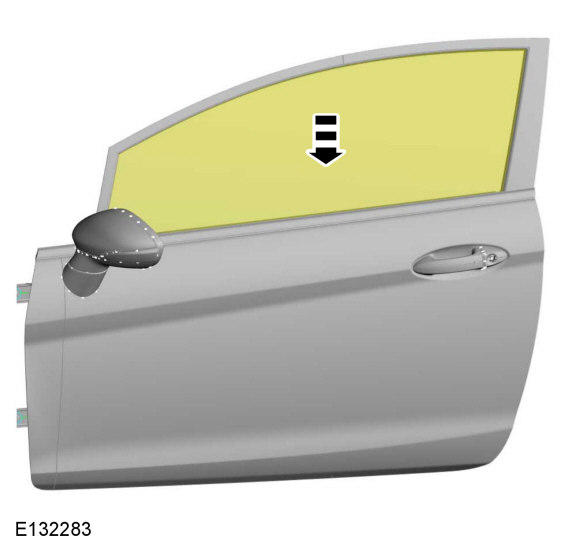

Lower the front door window glass.

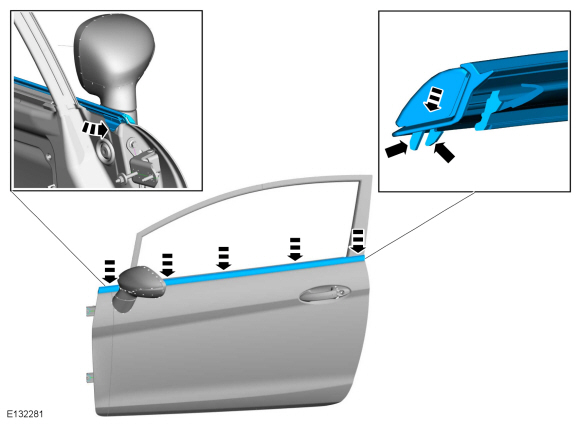

Remove the front door window glass weatherstrip and discard.

Installation

Install the front door window glass weatherstrip.
