Ford Fiesta: Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display / Front Display Interface Module (FDIM). Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Information and Entertainment Systems / Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display / Front Display Interface Module (FDIM). Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the instrument panel center upper trim panel.
Refer to: Instrument Panel Center Upper Trim Panel (501-12 Instrument Panel and Console, Removal and Installation).

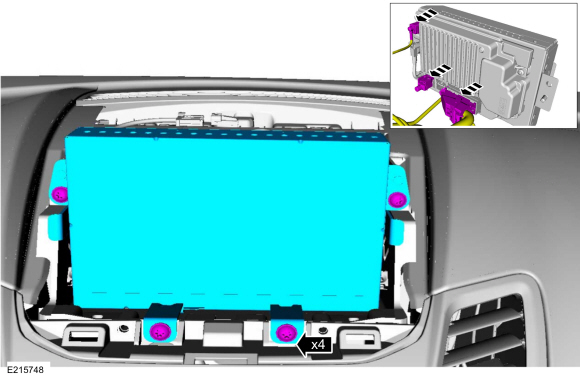

Remove the screws and the FDIM .
- Disconnect the electrical connectors.
  Torque: 14 lb.in (1.6 Nm)

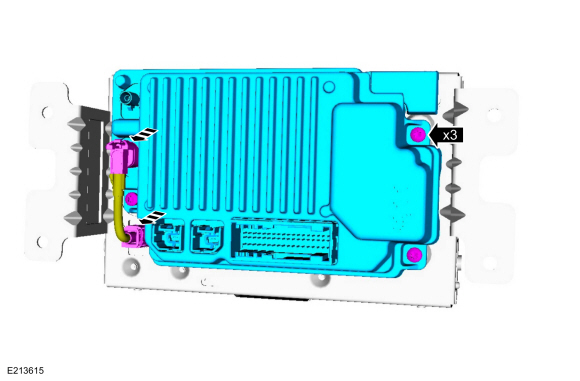

Remove the screws and separate the APIM from the FDIM .
- Disconnect the electrical connector.
  Torque: 9 lb.in (1 Nm)

Installation

To install, reverse the removal procedure.
