Ford Fiesta: Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display / Front Door Tweeter Speaker. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Information and Entertainment Systems / Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display / Front Door Tweeter Speaker. Removal and Installation

Removal

Remove the front door handle.
Refer to: Interior Front Door Handle (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).

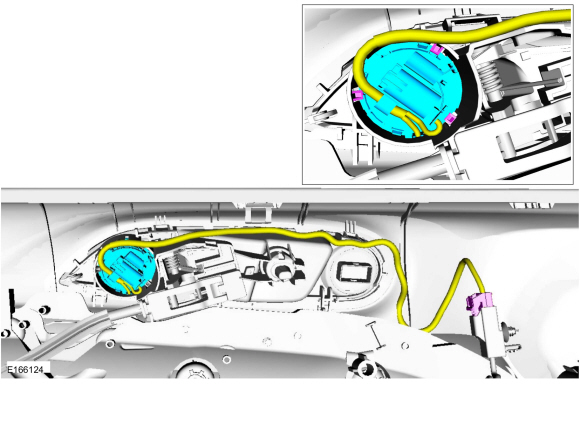

Release the tabs and remove the front door tweeter speaker.
- Disconnect the electrical connector.

Installation

To install, reverse the removal procedure.
