Ford Fiesta: Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma / Engine Cooling - Component Location. Description and Operation
Ford Fiesta 2014 - 2019 Service Manual / Engine / Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma / Engine Cooling - Component Location. Description and Operation

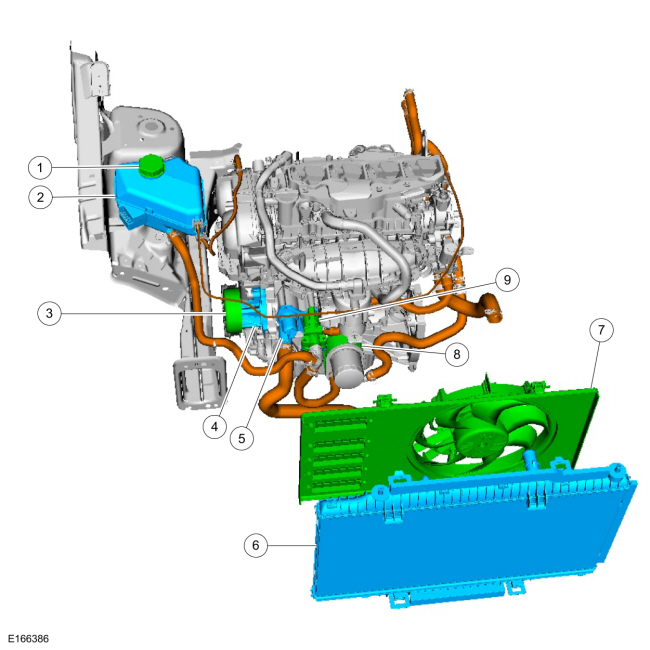

| Item | Description |
|---|---|
| 1 | Pressure relief cap |
| 2 | Degas bottle |
| 3 | Coolant pump pulley |
| 4 | Coolant pump |
| 5 | Thermostat housing |
| 6 | Radiator |
| 7 | Cooling fan motor and shroud |
| 8 | Oil cooler |
| 9 | Coolant shutoff solenoid valve |

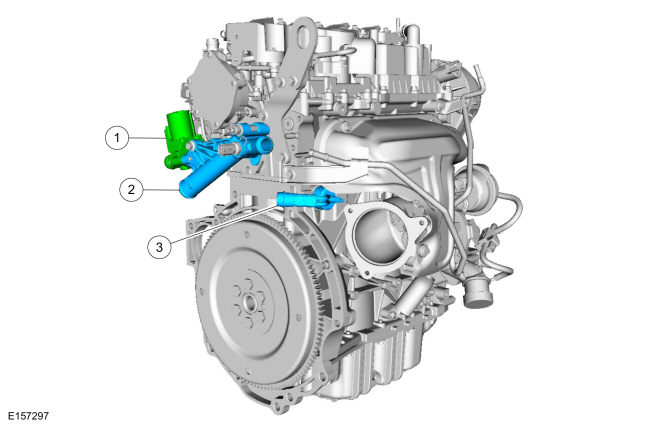

| Item | Description |
|---|---|
| 1 | Coolant bypass solenoid valve |
| 2 | Coolant connection |
| 3 | Block heater |
Specifications
Original Fluids
Name
Fill Capacity
Material: Motorcraft® Orange Concentrated Antifreeze/Coolant
/ VC-3-B
(WSS-M97B44-D)
8...
Engine Cooling - System Operation and Component Description. Description and Operation
System Operation
Engine coolant flows primarily from the engine to the radiator circuit
and back to the coolant pump. Coolant is sent from the coolant pump
through the engine block and cylinder heads...
