Ford Fiesta: Instrument Panel and Console / Cup Holder Trim Ring. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Instrument Panel and Console / Cup Holder Trim Ring. Removal and Installation

Removal

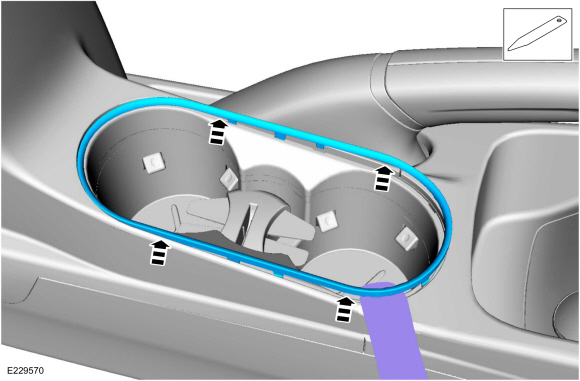

Pry upwards on the cup holder trim ring to remove.

Installation

NOTE: The cup holder trim ring is indexed and can only be installed one way.

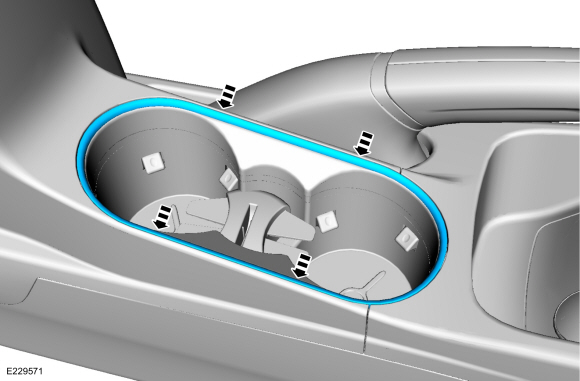

Press down on the holder cup trim ring until fully seated.

Auxiliary Power Point. Removal and Installation

Special Tool(s) / General Equipment 501-039Remover, Power Point SocketTKIT-1998-FLMTKIT-1998-LM Removal Open the power point cover...

Floor Console. Removal and Installation

Special Tool(s) / General Equipment Interior Trim Remover Removal NOTE: Removal steps in this procedure may contain installation details...
