Ford Fiesta: Battery, Mounting and Cables / Battery Cables. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Battery and Charging System / Battery, Mounting and Cables / Battery Cables. Removal and Installation

Removal

Negative battery cable

If equipped, remove the battery monitoring sensor.
Refer to: Battery Monitoring Sensor (414-01 Battery, Mounting and Cables, Removal and Installation).

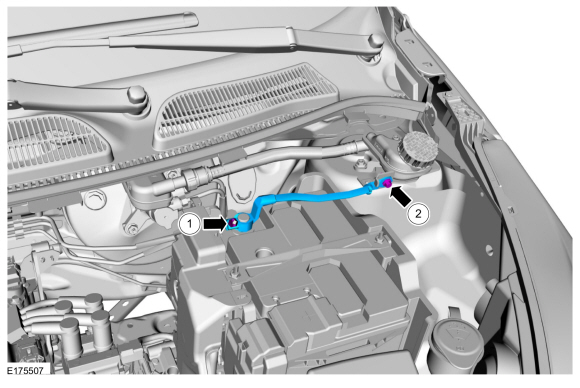

1. Remove the nut.
  Torque: 44 lb.in (5 Nm)
1. Remove the bolt and the battery negative cable.
  Torque: 115 lb.in (13 Nm)

Positive battery cable

NOTE: The positive battery cable is part of the engine compartment wiring harness.

Installation

To install, reverse the removal procedure.

If equipped with power windows, perform the window motor initialization.
Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).

Battery Tray - 1.6L EcoBoost (132kW/180PS) – Sigma. Removal and Installation

Removal WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information...
