Ford Fiesta: Accessory Drive - 1.6L EcoBoost (132kW/180PS) – Sigma / Accessory Drive - Component Location. Description and Operation

Ford Fiesta 2014 - 2019 Service Manual / Engine / Accessory Drive - 1.6L EcoBoost (132kW/180PS) – Sigma / Accessory Drive - Component Location. Description and Operation

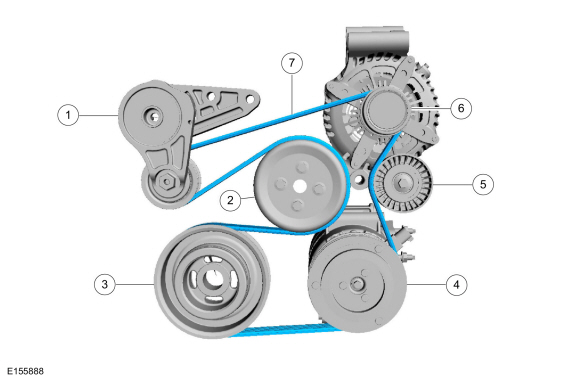

Item Description
1 Accessory drive belt tensioner
2 Water pump pulley
3 Crankshaft belt pulley
4 Pulley - A/C compressor
5 Drive belt idler pulley assembly
6 Generator pulley
7 Accessory drive belt
