Ford Fiesta: Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC / SYNC Module [APIM]. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Information and Entertainment Systems / Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC / SYNC Module [APIM]. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Upload the APIM configuration to the scan tool by following the scan tool on-screen instructions.

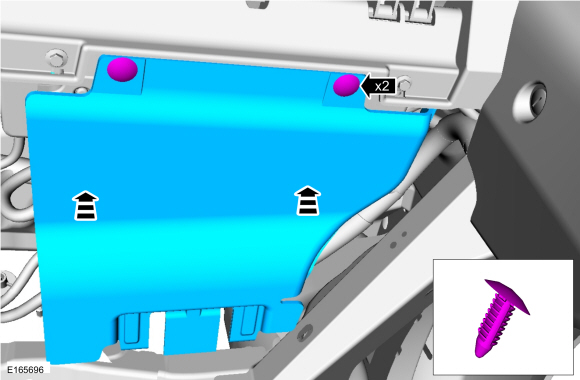

Release the retainers and remove the bracket.

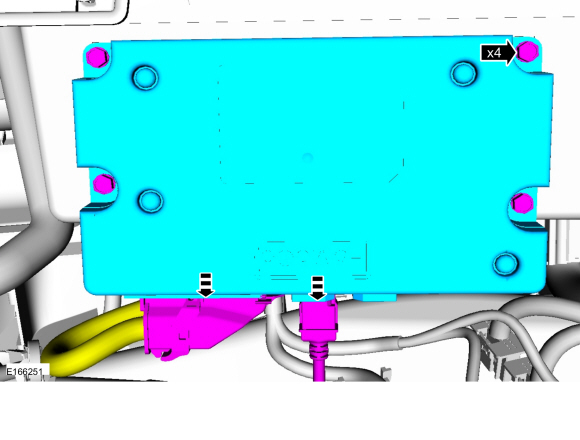

Remove the 4 bolts and the APIM .
- Disconnect the electrical connectors.
  Torque: 22 lb.in (2.5 Nm)

Installation

To install, reverse the removal procedure.

If installing a new APIM , program the APIM .
Refer to: SYNC Module [APIM] Programming (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, General Procedures).
