Ford Fiesta: Electronic Engine Controls - 1.6L EcoBoost (132kW/180PS) – Sigma / Manifold Absolute Pressure (MAP) Sensor. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Engine / Electronic Engine Controls - 1.6L EcoBoost (132kW/180PS) – Sigma / Manifold Absolute Pressure (MAP) Sensor. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

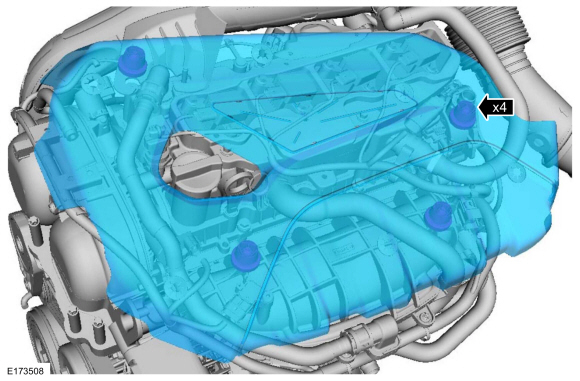

Remove the engine appearance cover.

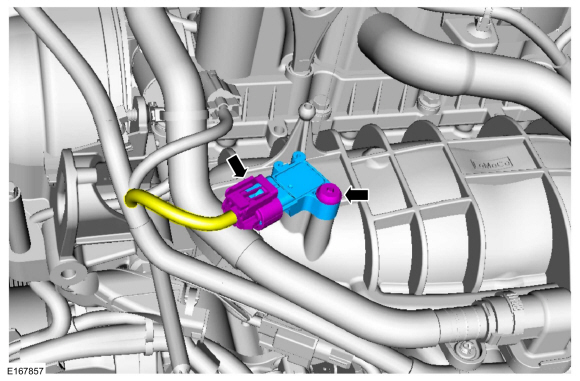

Disconnect the electrical connector, remove the retainer and the MAP sensor.
Torque: 27 lb.in (3 Nm)

Installation

To install, reverse the removal procedure.

Intake Air Temperature (IAT) Sensor. Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. Disconnect the electrical connector, remove the retainers and the IAT sensor...

Turbocharger Boost Pressure (TCBP) and Charger Air Cooler Temperature (CACT) Sensor. Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. With the vehicle in NEUTRAL, position it on a hoist...
