Ford Fiesta: Climate Control System - General Information / Heater Core. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Climate Control System / Climate Control System - General Information / Heater Core. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the heater core and evaporator core housing - vehicles with: EATC and remove the heater core and evaporator core housing - vehicles with: EMTC .
    Refer to: Heater Core and Evaporator Core Housing - Vehicles With: Electronic Automatic Temperature Control (EATC) (412-00 Climate Control System - General Information, Removal and Installation).
    Refer to: Heater Core and Evaporator Core Housing - Vehicles With: Electronic Manual Temperature Control (EMTC) (412-00 Climate Control System - General Information, Removal and Installation).

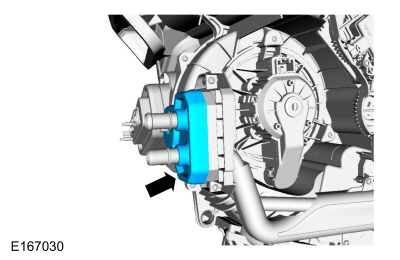

  1. Remove the heater tube dash panel seal.

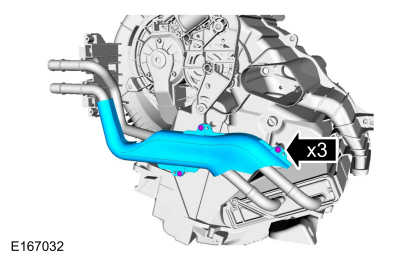

  1. Remove the retainers and the heater tube bracket.

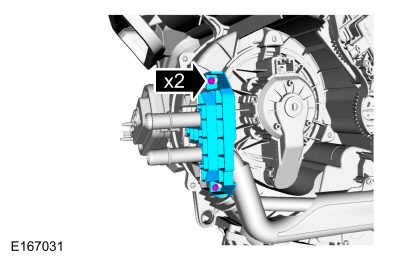

  1. Remove the retainers and the heater core cover.

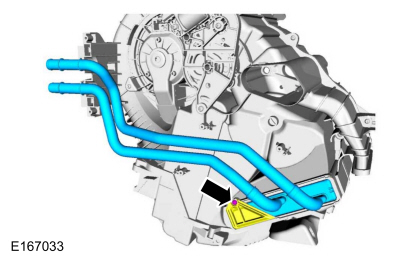

  1. Remove the retainer, position aside the cover and remove the heater core.

Installation

  1. To install, reverse the removal procedure.
