Ford Fiesta: Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display / Front Door Speaker. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Information and Entertainment Systems / Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC/Touchscreen Display / Front Door Speaker. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the front door trim panel.
Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

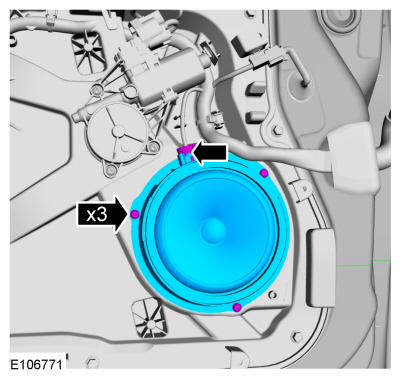

Remove the bolts and the speaker.
- Disconnect the electrical connector.
  Torque: 18 lb.in (2 Nm)

Installation

To install, reverse the removal procedure.

Front Door Tweeter Speaker. Removal and Installation

Removal Remove the front door handle. Refer to: Interior Front Door Handle (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation)...

Microphone. Removal and Installation

Special Tool(s) / General Equipment Interior Trim Remover Removal NOTE: If the microphone is removed from the headliner, a new microphone must be installed...
