Ford Fiesta: Front End Body Panels / Fender Splash Shield. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Front End Body Panels / Fender Splash Shield. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire.
Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

If equipped.

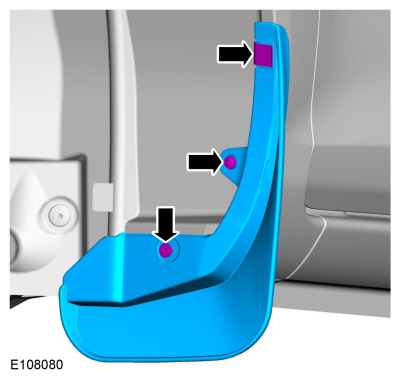

Remove the retainers and the mud flap.

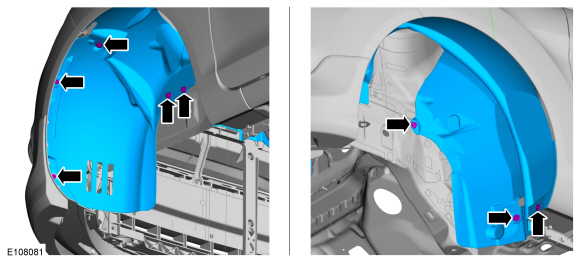

Remove the screws, retainers and the fender splash shield.

Installation

To install, reverse the removal procedure.
