Ford Fiesta: Evaporative Emissions - 1.6L EcoBoost (132kW/180PS) – Sigma / Evaporative Emission Canister Vent Solenoid. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Engine / Evaporative Emissions - 1.6L EcoBoost (132kW/180PS) – Sigma / Evaporative Emission Canister Vent Solenoid. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the EVAP canister.
Refer to: Evaporative Emission Canister (303-13B Evaporative Emissions - 1.6L EcoBoost (132kW/180PS) – Sigma, Removal and Installation).

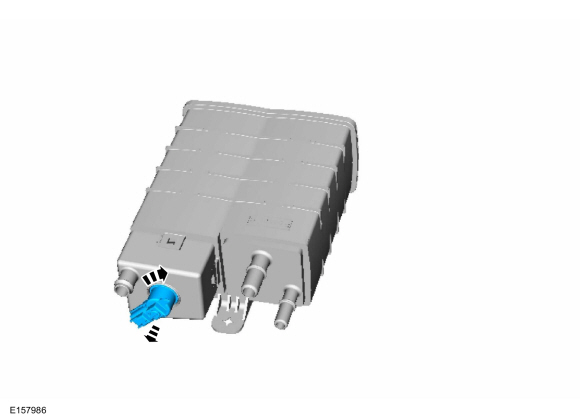

Rotate the EVAP canister vent solenoid clockwise and remove.

Installation

To install, reverse the removal procedure.
