Ford Fiesta: Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC / Audio Front Control Module (ACM). Removal and Installation

Removal

NOTE: If the ACM did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair.

1. NOTE: This step is only necessary when installing a new component.

   NOTE: The PMI process must begin with the current ACM installed. If the current ACM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

   Using a diagnostic scan tool, begin the PMI process for the ACM following the on-screen instructions.


1. Remove the FCIM .
   Refer to: Front Controls Interface Module (FCIM) (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).


1.

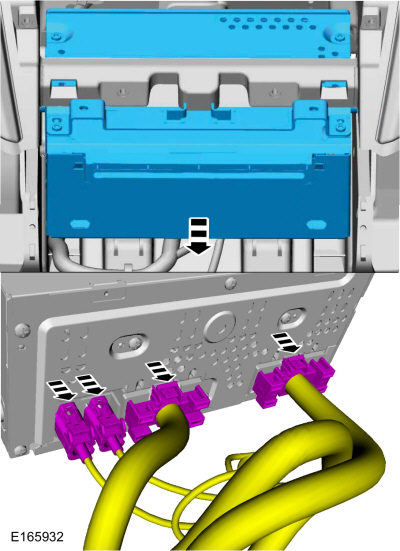

   Remove the ACM .

   • Disconnect the electrical connectors.


Installation

1. To install, reverse the removal procedure.


1. NOTE: This step is only necessary when installing a new component.

   Using a diagnostic scan tool, complete the PMI process for the ACM following the on-screen instructions.
