Ford Fiesta: Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC / Front Controls Interface Module (FCIM). Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. NOTE: This step is only necessary when installing a new component.

   NOTE: The PMI process must begin with the current FCIM installed. If the current FCIM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

   Using a diagnostic scan tool, begin the PMI process for the FCIM following the on-screen instructions.


1. Remove the instrument panel center upper trim panel.
   Refer to: Instrument Panel Center Upper Trim Panel (501-12 Instrument Panel and Console, Removal and Installation).


1.

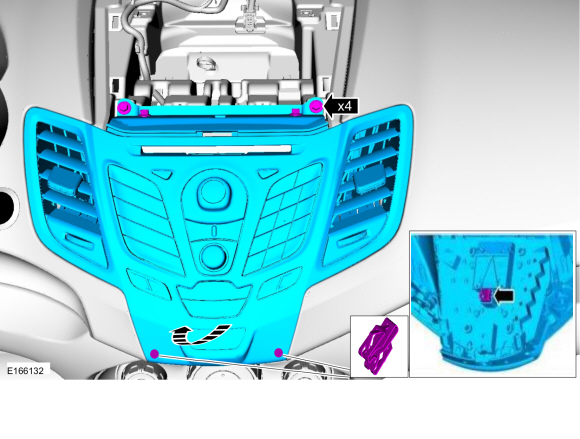

   Release the clips, remove the bolts and the FCIM , media bin and center register assembly.

   • Disconnect the electrical connector.
     Torque: 23 lb.in (2.6 Nm)

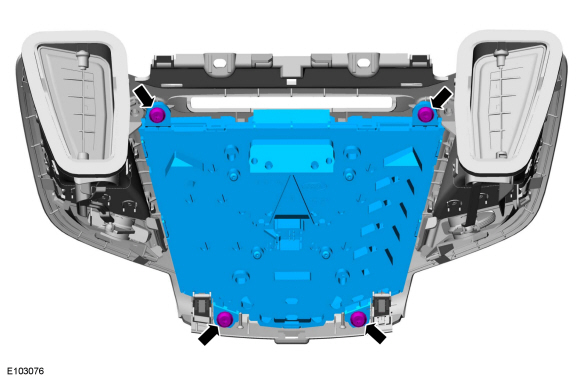

1. Remove the bolts and the FCIM .
   Torque: 12 lb.in (1.3 Nm)

Installation

1. To install, reverse the removal procedure.


1. NOTE: This step is only necessary when installing a new component.

   Using a diagnostic scan tool, complete the PMI process for the FCIM following the on-screen instructions.
