Removal

NOTE: LH side shown, RH side similar.

NOTE: 5-door shown, 4-door similar.

NOTE: Removal steps in this procedure may contain installation details.

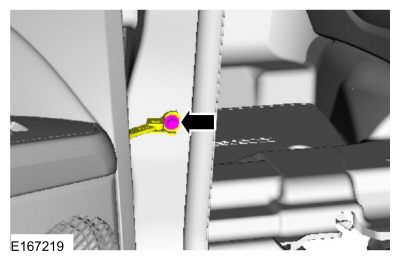

  1. Remove the check arm bolt.
    Torque: 18 lb.ft (25 Nm)

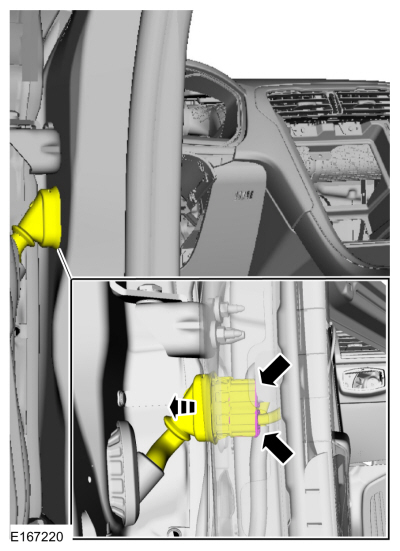

  1. Disconnect the rear door electrical connector.

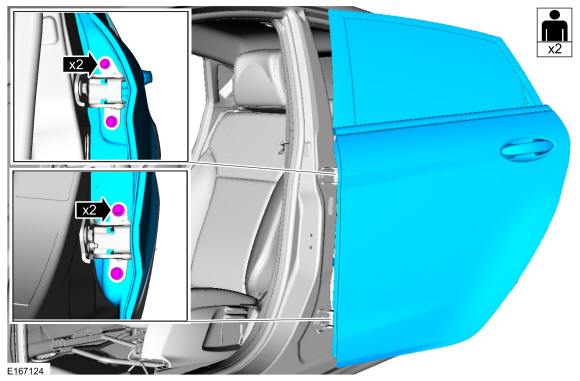

  1. NOTE: This step requires the aid of another technician.

    Remove the bolts and the door.
    Torque: 18 lb.ft (24 Nm)

Installation

  1. To install, reverse the removal procedure.
  1. Check the alignment and correct if necessary.
    Refer to: Rear Door Alignment (501-03 Body Closures, General Procedures).
