Ford Fiesta: Instrument Panel and Console / Instrument Panel Lower Trim Panel. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Instrument Panel and Console / Instrument Panel Lower Trim Panel. Removal and Installation

Removal

NOTE: Automatic transmission shown, manual transmission similar.

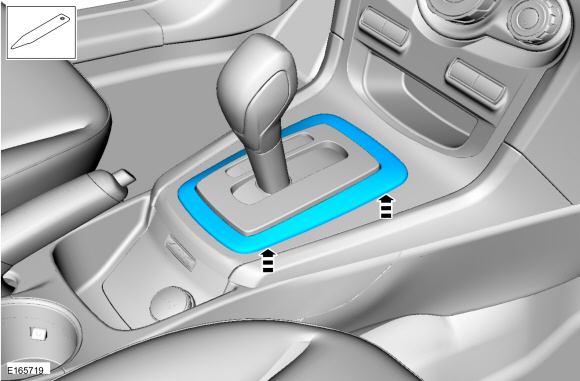

Remove the selector lever finish panel.

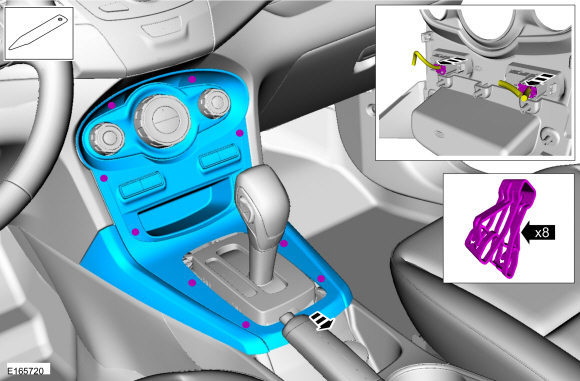

Release the clips and remove the instrument panel lower trim panel. Disconnect the electrical connectors.

Installation

To install, reverse the removal procedure.

Instrument Panel Center Upper Trim Panel. Removal and Installation

Special Tool(s) / General Equipment Interior Trim Remover Removal NOTE: Instrument panel center upper trim panel with 6...

Instrument Panel Passenger Side Finish Panel. Removal and Installation

Removal Release the retaining tabs and remove the glove compartment. Release the retaining tabs and remove the instrument panel passenger side finish panel...
