Ford Fiesta: Horn / Horn. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Instrumentation and Warning Systems / Horn / Horn. Removal and Installation

Removal

NOTE: The removal steps in this procedure may include installation details.

Remove the RH headlamp assembly.
Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).

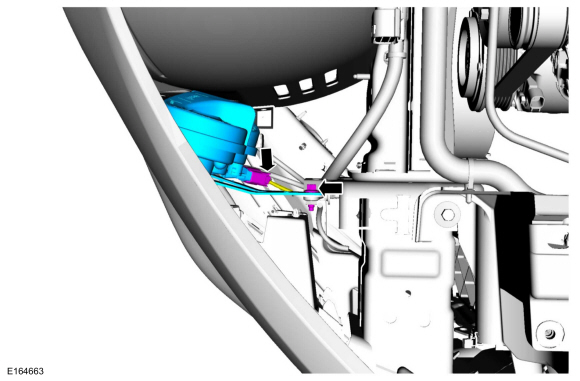

Disconnect the electrical connector, remove the bolt and the horn.
Torque: 17 lb.ft (23 Nm)

Installation

To install, reverse the removal procedure.
