Ford Fiesta: Engine - 1.6L EcoBoost (132kW/180PS) – Sigma / Engine Mount. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Engine / Engine - 1.6L EcoBoost (132kW/180PS) – Sigma / Engine Mount. Removal and Installation

Special Tool(s) / General Equipment

Trolley Jack
Wooden Block

Removal

Remove the degas bottle.
Refer to: Degas Bottle (303-03B Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma, Removal and Installation).

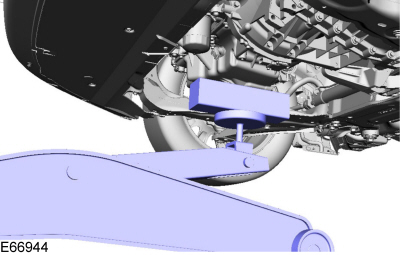

Using the floor jack and a wooden block, support the engine.
Use the General Equipment: Trolley Jack
Use the General Equipment: Wooden Block

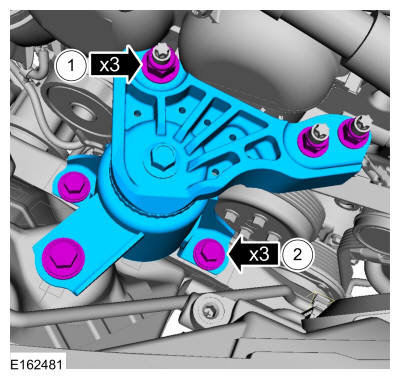

1. Remove the nuts.
1. Remove the bolts and the engine mount.

Installation

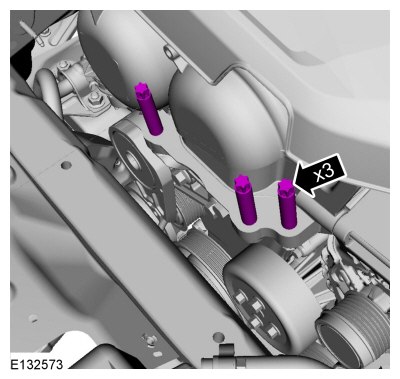

Tighten the engine mount studs.
Torque: 89 lb.in (10 Nm)

1. Install the engine mount and the nuts.
  Torque: 59 lb.ft (80 Nm)
1. Install the bolts.
  Torque: 35 lb.ft (48 Nm)

Remove the trolley jack and the wooden block.
Use the General Equipment: Trolley Jack
Use the General Equipment: Wooden Block

Install the degas bottle.
Refer to: Degas Bottle (303-03B Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma, Removal and Installation).
