Ford Fiesta: Climate Control System - General Information / Center Registers. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Climate Control System / Climate Control System - General Information / Center Registers. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Vehicles with touchscreen display shown, vehicles without touchscreen display similar.

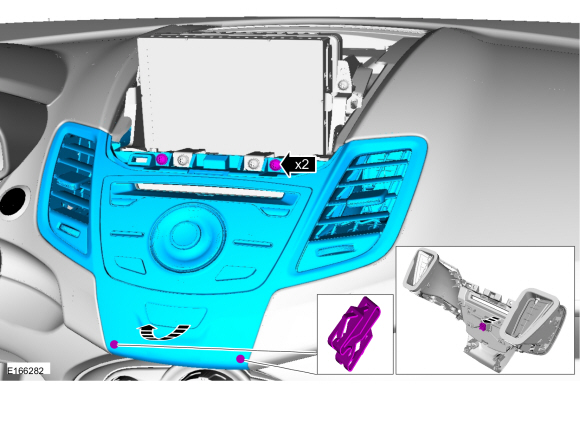

Remove the instrument panel center upper trim panel.
Refer to: Instrument Panel Center Upper Trim Panel (501-12 Instrument Panel and Console, Removal and Installation).

NOTE: Vehicles with touchscreen display have 2 screws. Vehicles without touchscreen display have 4 screws.
Remove the retainers, release the clips and remove the FCIM . Disconnect the electrical connector.

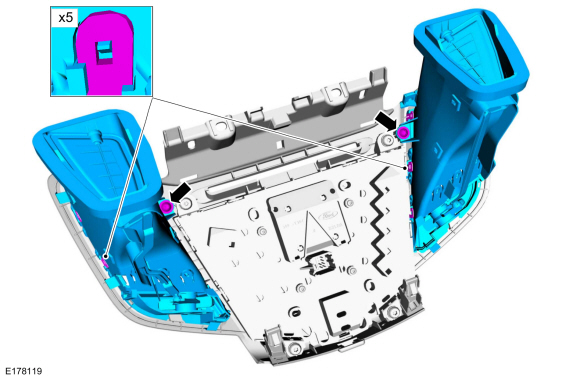

Remove the retainers, release the tabs and remove the center registers.

Installation

To install, reverse the removal procedure.

Cabin Air Filter. Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. Remove the push pin, release the clips and remove the RH floor console trim panel...

Center Register Air Discharge Temperature Sensor. Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. Release the clips and remove the instrument panel center upper trim panel...
