Ford Fiesta: Interior Lighting / Ambient Lighting Module. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Lighting / Interior Lighting / Ambient Lighting Module. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the instrument panel lower trim panel.
    Refer to: Instrument Panel Lower Trim Panel (501-12 Instrument Panel and Console, Removal and Installation).
  1. Remove the floor console finish panel.
    Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).

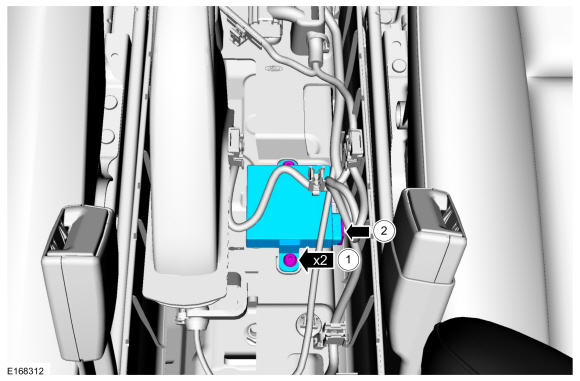

  1. Remove the ambient lighting module.
    1. Remove the screws.
    1. Disconnect the electrical connector.

Installation

  1. To install, reverse the removal procedure.
