Removal

Remove the appropriate wheel and tire.
Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

NOTE: If equipped with air dam extensions.

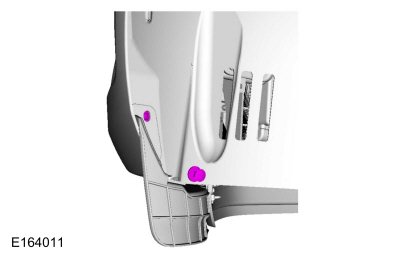

Remove the screw and the pin-type retainer.

NOTE: If equipped with air dam extensions.

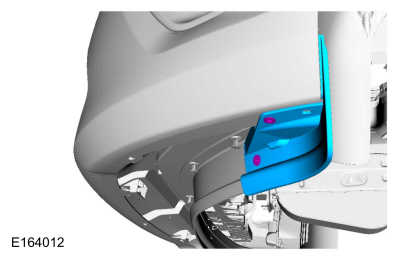

Remove the screws and the front stone deflector extension.

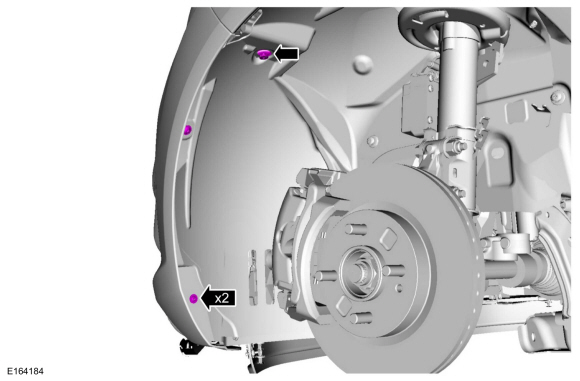

Remove the plastic rivets and bolt from the front of the fender liner.

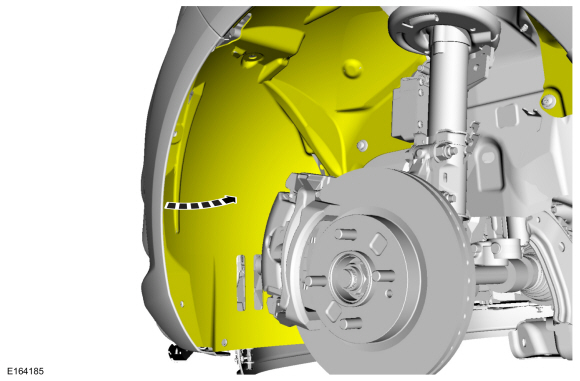

Position the fender splash shield.

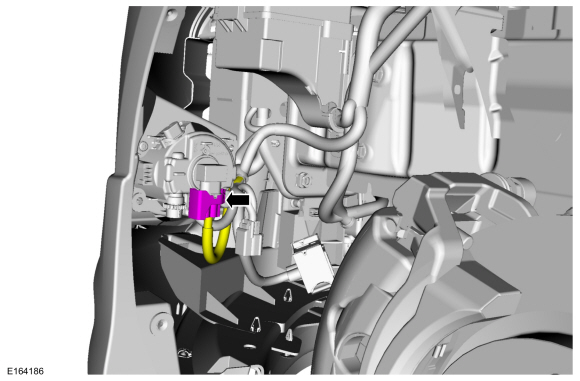

Disconnect the fog lamp electrical connector.

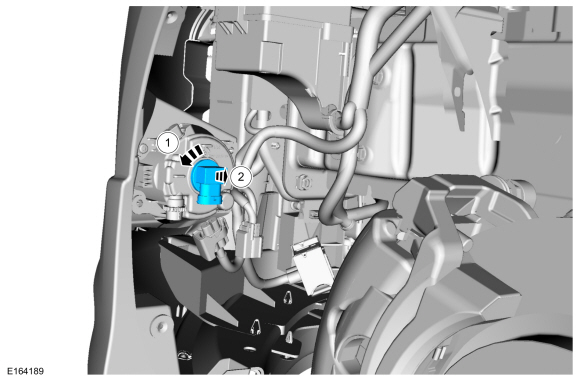

1. Rotate the front fog lamp bulb.
1. Remove the front fog lamp bulb.

Installation

To install, reverse the removal procedure.
